EF 3040A Series Selective Flow Soldering Machines

EF 3040A Series

Award-winning, all-in-one entry level machines for superior standalone or inline soldering.

EF 3040A

EF IN3040A - In-Line EF IN3040A

The EF 3040A revolutionizes selective soldering with its patented direct drive motor and impeller design, significantly reducing sludge, dross, and dust. This unique approach enhances soldering quality, minimizes maintenance requirements, and lets us pack extreme functionality into an entry-level, entry-priced machine.

Apply flux and solder in a single machine, or in an inline series for efficiency. Features like live teaching, scanned image teaching, and Gerber data integration exemplify its innovative teaching capabilities, allowing for precise and adaptable soldering processes. Designed with modern manufacturing in mind, the EF 3040A integrates seamlessly with existing systems, including MES environments. Its PC control system and remote assistance functionality ensure compatibility with current production setups and advanced Industry 4.0 initiatives.

Key Features

• Innovative Tech Reduces Maintenance and Costs

  The EF 3040A revolutionizes selective soldering with its patented direct drive motor and impeller design, significantly reducing sludge, dross, and dust. This unique approach enhances soldering quality while minimizing maintenance requirements. This lets us produce a simpler, entry-level machine capable of competing fiercely against more complicated and expensive machines.

• Excellent Software Means Excellent User Experiences

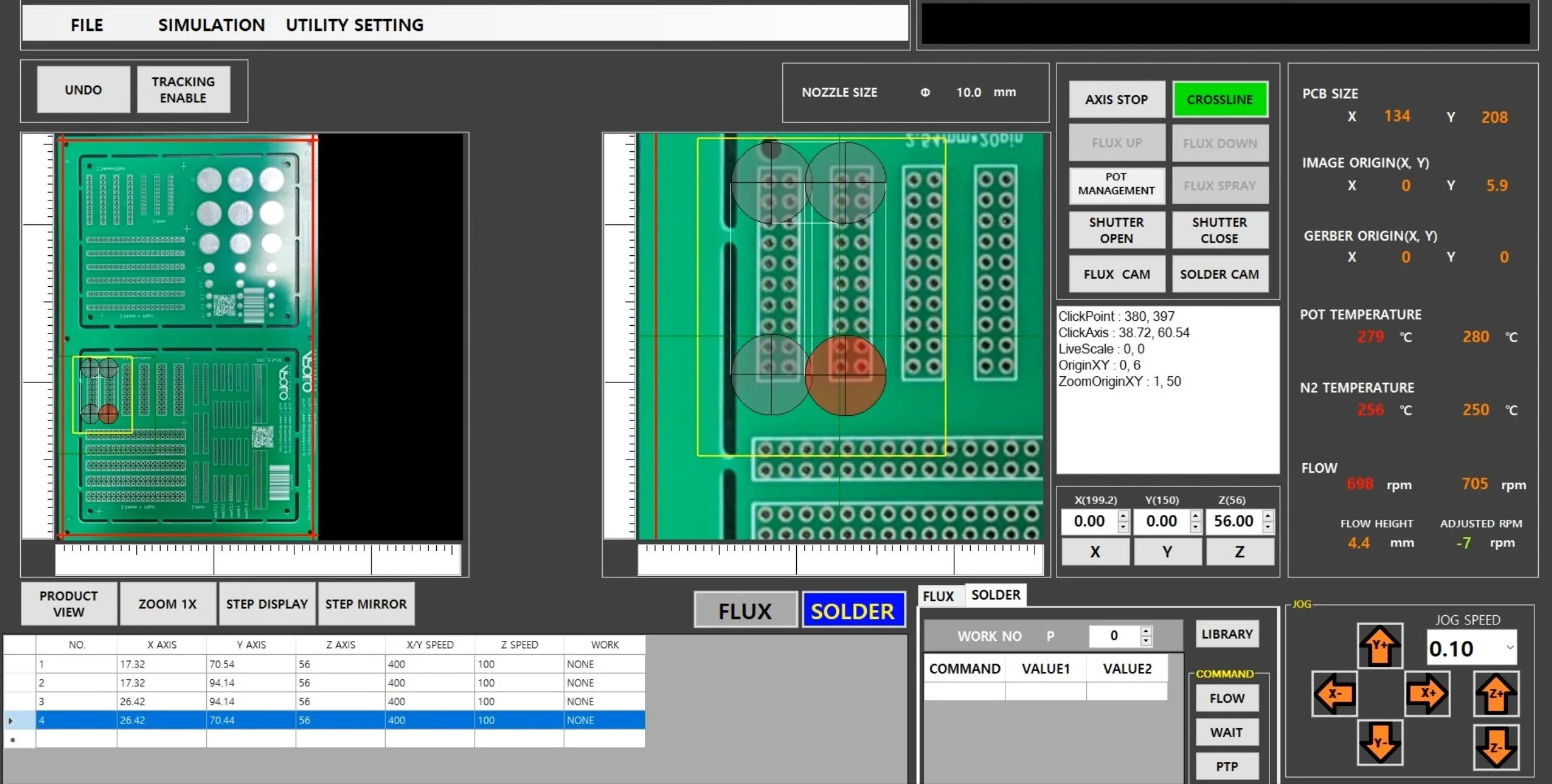

  The EF 3040A simplifies operation with its PC control GUI. It then takes things a step further with live, scanned image, and Gerber data teaching options to adapt and cater to operators of varying expertise, ensuring ease of use and minimal learning curves.

• Production Flexiblity

  Offering a broad selection of standard and custom nozzles—including rectangular and square shapes—the EF 3040A adapts to various PCB designs. Features like live teaching and Gerber data teaching further enhance its flexibility, allowing for quick reconfiguration.

• Superior Design Sensibilities

  The EF 3040A features an ergonomic, streamlined design with safety-enhancing elements like the AC servo motor shutter door and built-in safety sensor. Its intuitive layout simplifies operation, teaching, and maintenance while ensuring high reliability in production environments.

• Maintainability and Reparability

  Built for longevity, the EF 3040A’s solder pot and nozzle designs are engineered for straightforward maintenance. The patented impeller design reduces the accumulation of sludge and dross, minimizing cleaning frequency and maximizing uptime. Remote diagnostics support quick troubleshooting, ensuring minimal disruption to production.

Model Overviews

The EF 3040A:

Standalone, offline, all-in-one flux application and selective soldering.

The EF IN3040A:

Inline, single module ready to be integrated into your line with flux application and selective soldering.

The EF IN3040 3Zone:

Inline 3-module selective soldering machine with flux application, preheating, and selective soldering.
